Universal File Share Connector

The Universal File Share Connector enables Gimmal Records to manage the lifecycle of documents stored on network file shares.

The current version of the Universal File Share Connector is 6.0

For the Universal File Share Connector to be able to effectively manage network file shares, the file shares should be located within the same Local Area Network and, if possible, on the same machine where the Universal File Share Connector is installed.

The Universal File Share Connector can be used to crawl network file shares directly or via Gimmal Discover.

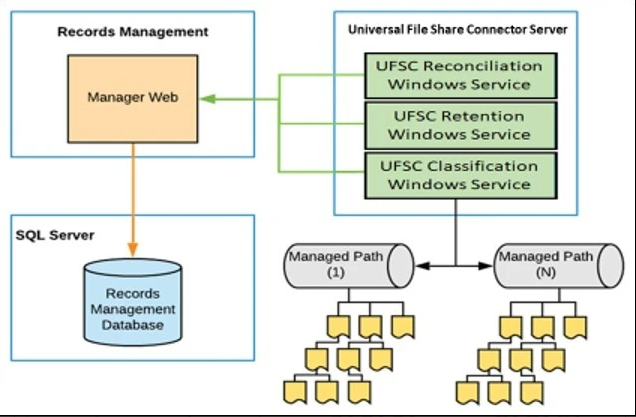

Universal File Share Connector Architecture

Scalability

What comprises the solution...	.NET-based Windows Service for crawling and classification .NET-based Windows Server for retention action execution Services are configured by adding a list of file share paths to be managed
How scaling works...	Each managed path represents a single application thread Managed paths must not overlap The application can be installed on multiple servers to form a cluster Application supports failover, not load distribution Managed paths can be divided among multiple clusters
When to scale...	When CPU Utilization is consistently above 90% for extended periods, a new cluster should be created, and managed paths should be divided among the available clusters When Memory Pressure is consistently above 80% for extended periods, a new cluster should be created, and managed paths should be divided among the available clusters
General Sizing Guidelines...	(Total # Files / 10,000,000) = # Managed Paths Ceiling(# Managed Paths / 10) = # Servers

This documentation is for the Universal File Share Connector. The old ‘File Share Connector’ has been deprecated. Concurrent use of both the Universal File Share Connector and the original File Share Connector is not supported.
