Configure SharePoint Server

Configure for SharePoint 2016 and later

To finish installing the SharePoint Connector, you must perform the following steps:

  1. After the solution has been deployed, you must activate SharePoint Connector Farm Feature by performing the following steps:

    • Open Central Administration.

    • Navigate to Central Administration > System Settings > Manage Farm Features.

    • Find the SharePoint Connector Feature and click Activate.



  2. Next, you must create a Gimmal SharePoint Connector Service Application. To do this, perform the following steps:

    • Open Central Administration.

    • Navigate to Central Administration > Application Management > Manage Service Applications.

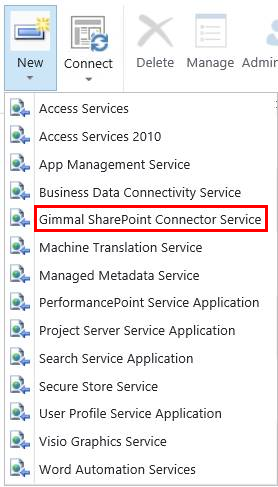

    • From the New option in the ribbon, choose Gimmal SharePoint Connector Service.

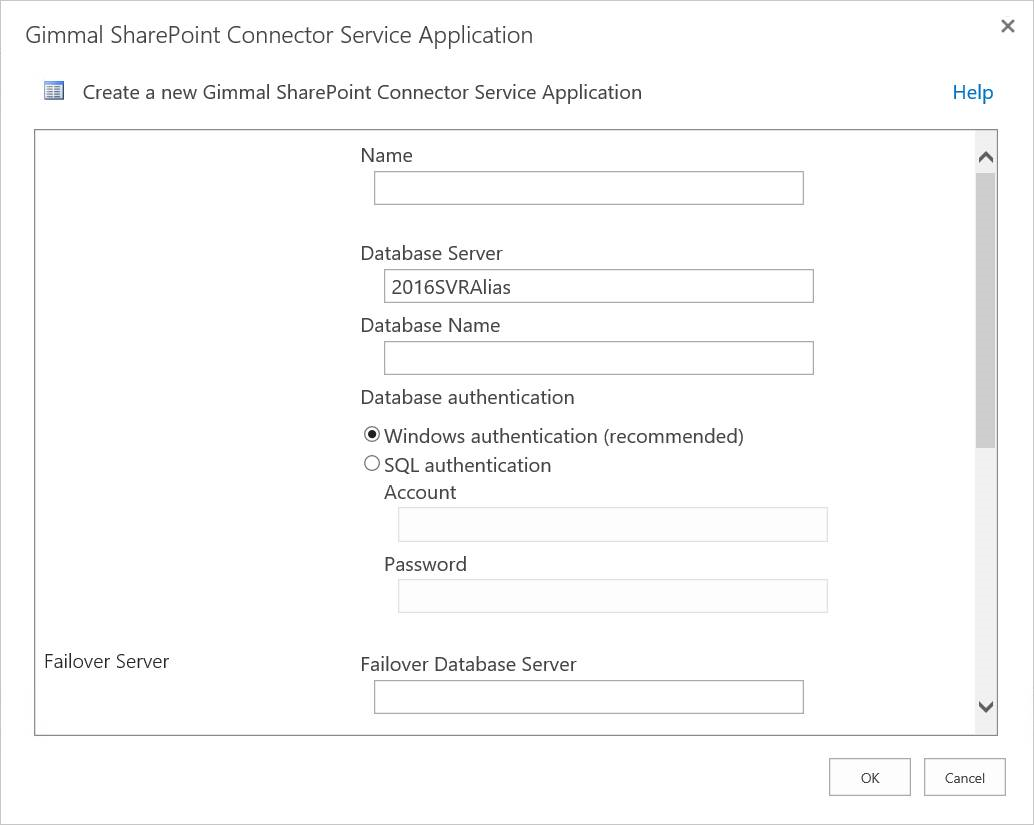

    • Provide the requested information to create the Service Application. (Important! A unique name is required for the Database Name setting.)



    • Click OK.

  3. After you create the Gimmal SharePoint Connector Service Application, you must start the Gimmal SharePoint Connector Service on each SharePoint Server that should process Gimmal SharePoint Connector Timer Jobs. To do this, perform the following steps:

    • Open Central Administration.

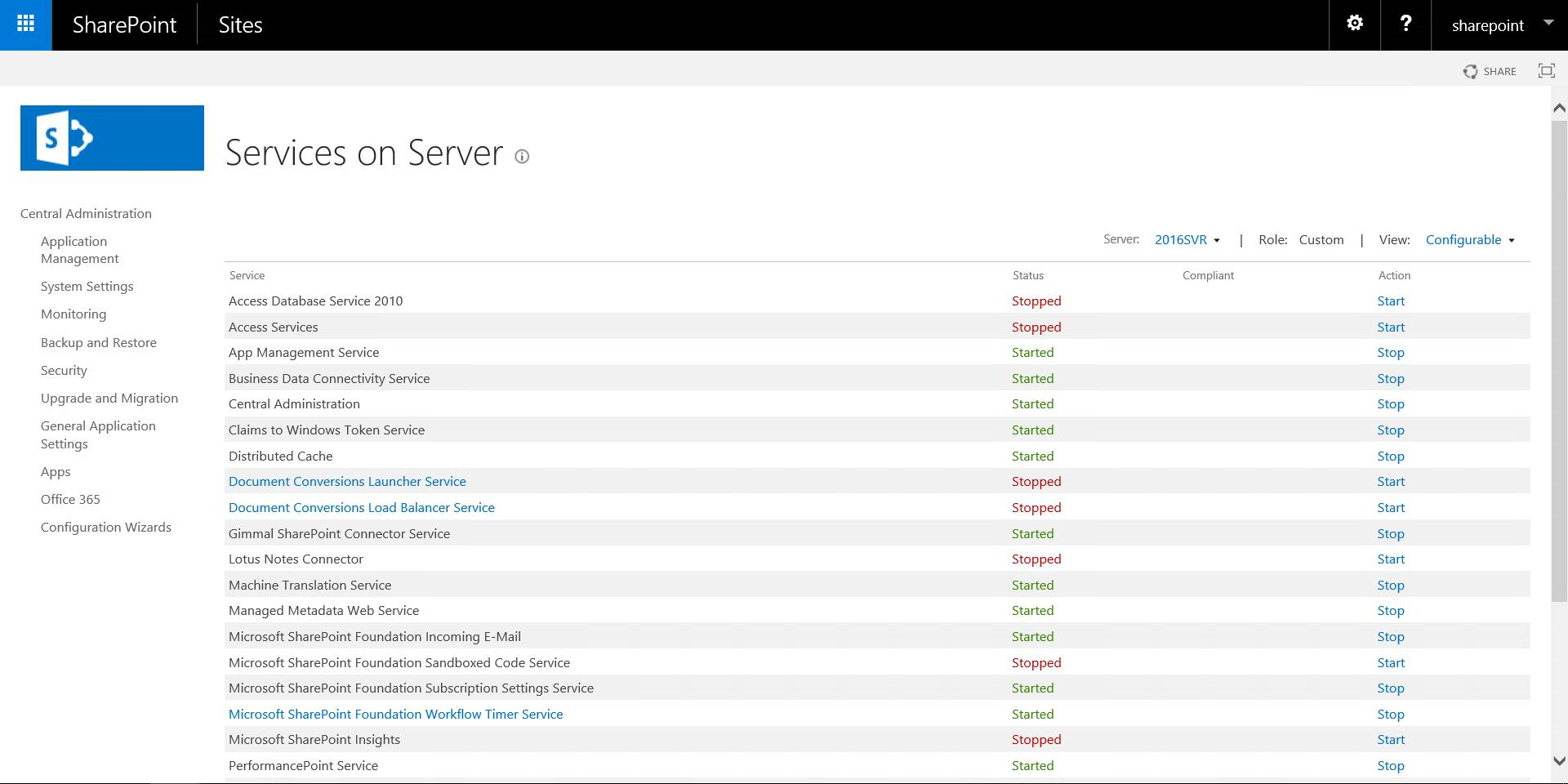

    • Navigate to Central Administration > System Settings > Manage Services on Server.

    • Select the Server in which you want to start the service.

    • Click Start on the row provider for the Gimmal SharePoint Connector Service.



  4. After starting the Gimmal SharePoint Connector Service, you must configure the Connector to communicate with Information Lifecycle. To do this, perform the following steps:

    • Open Central Administration.

    • Navigate to Central Administration > Application Management > Manage Service Applications.

    • Select the Gimmal SharePoint Connector Service Application.

    • From the Ribbon, click Manage.

    • Click Configure Connection.

    • Enter the following information:

    • Click OK.
