Create Microsoft Graph API Connection Settings

Work with your Microsoft 365 Azure Administrator to authorize the Microsoft 365 SharePoint Connector with your Microsoft Graph API.

Prerequisites

• Configuring Graph API
• (5.2.2) Generate Self-Signed Certificate
• (5.2.2) Configure Azure App Registration

Microsoft Graph API Connection Settings

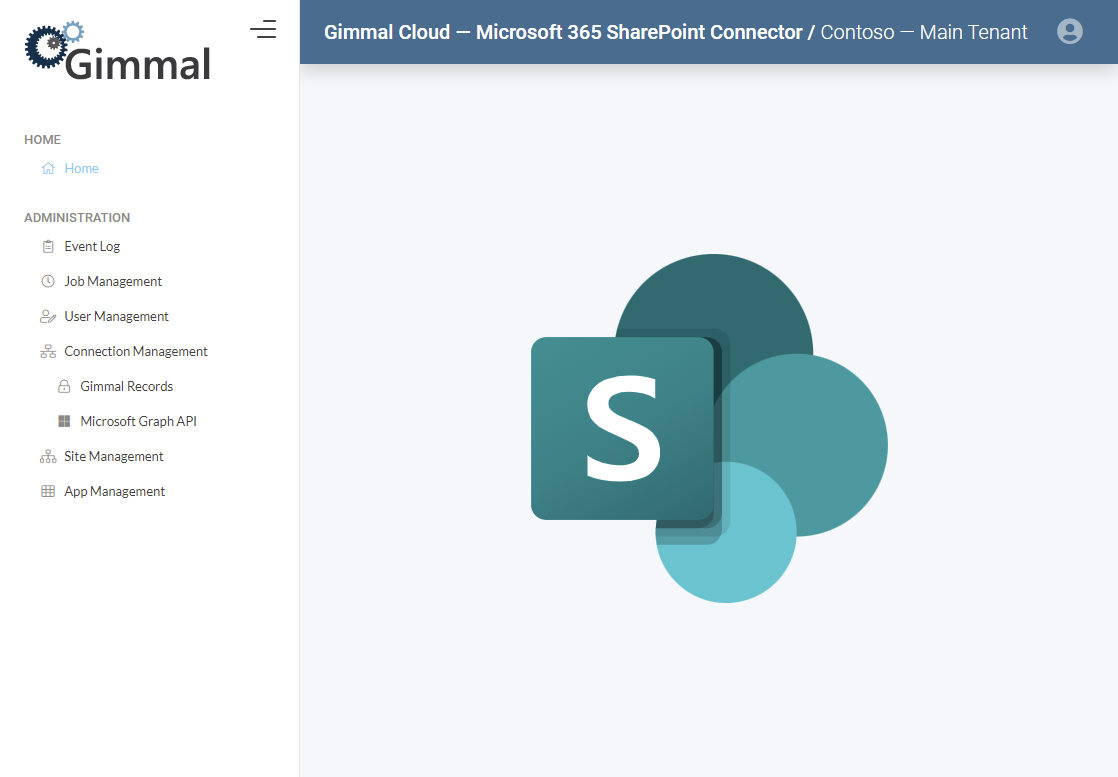

From the Stratus application landing page, click Microsoft 365 SharePoint Connector.

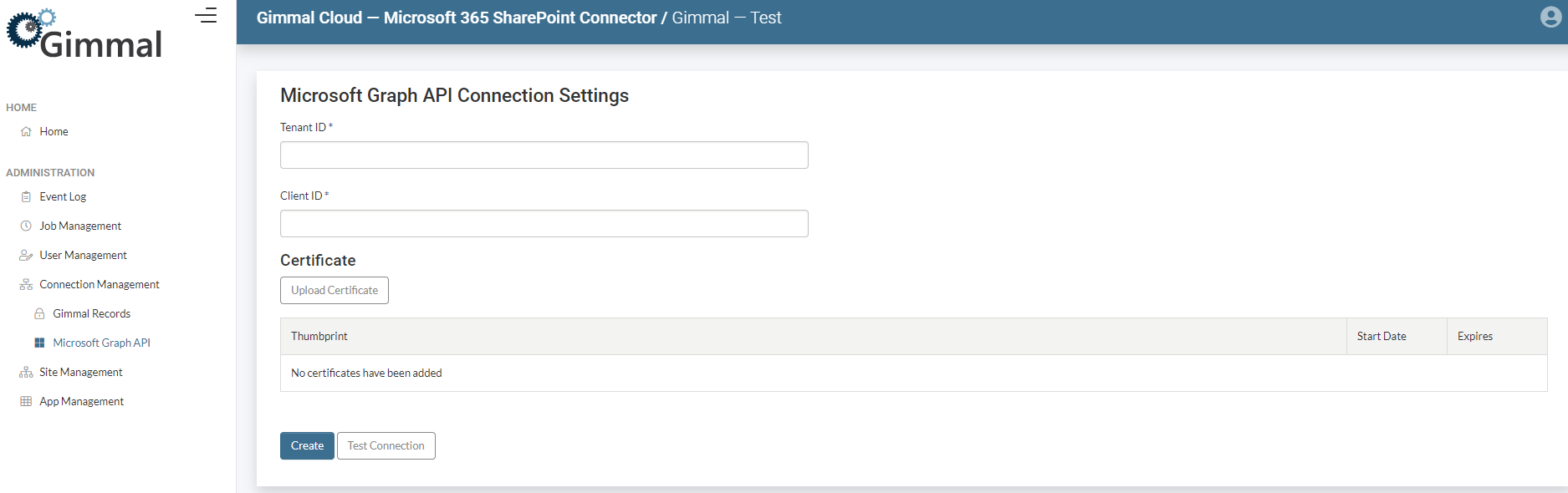

Click Microsoft Graph API underneath the Connection Management header.

Create Connection

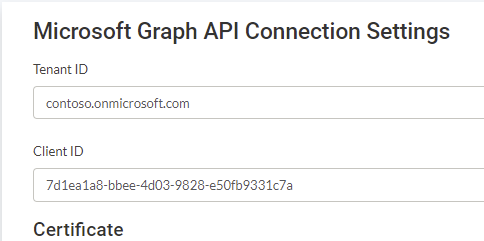

Enter your Microsoft Graph API Connection Settings:

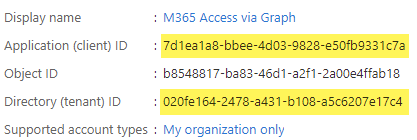

• Tenant ID
  • Also referred to as “Directory (tenant) ID”
• Client ID
  • Also referred to as “Application (client) ID”

Click Create to save your settings.

Upload Certificate

Go back to Microsoft Graph API underneath the Connection Management header.

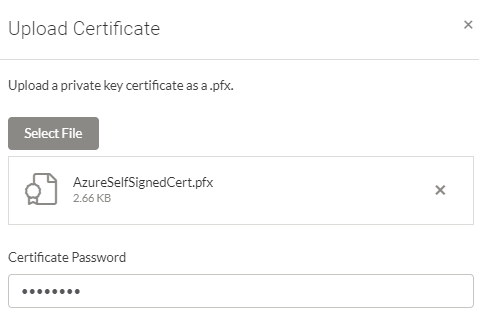

Click Upload Certificate.

Click Select File.

Select the .pfx file that was created in (5.2.2) Generate Self-Signed Certificate.

Enter the Certificate Password used in (5.2.2) Generate Self-Signed Certificate.

Click Upload.

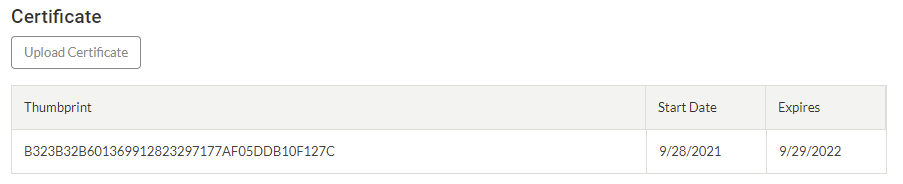

Verify the Thumbprint, Start Date, and Expires.

Click Test Connection.

You should see a success notification in the upper-right stating “The values are valid”.

Click Save again.
