Rule Builder

Rules are used throughout Gimmal Records Management for many purposes. This page documents how to build rules and the specifics about the different options.

Rule Components

Component	Description
Property	Represents the property of the Repository Item to compare against. *The property can be any public property that exists for an item or a special token that is defined. All possible tokens are available on the Rule Tokens page.
Operator	Represents the operator to use when comparing against the item. Possible values are: < (less than) <= (less than or equal to) = (equal to) > (greater than) >= (greater than or equal to) Like Not = (not equal to) Starts With Matches
Value	Represents the value of the expression that will be used when comparing against the item
Data Type	Represents the data type of the Repository Item to compare against. Using a more specific data type will result in a more accurate expression result. Possible values are: Date Date and Time Text Number
Join	Represents how individual rules are combined within the list. AND - All rules using subsequent AND joins are nested together OR - Does not nest, instead if separate sets of AND rules, for example (Exp1 AND Exp2) OR (Exp3) OR (Exp4 AND Exp5)

Rules for SharePoint and SharePoint Online

To create rules for SharePoint, you can either use SharePoint column properties or you can use tokens. See System Tokens and SharePoint Tokens for a complete list.

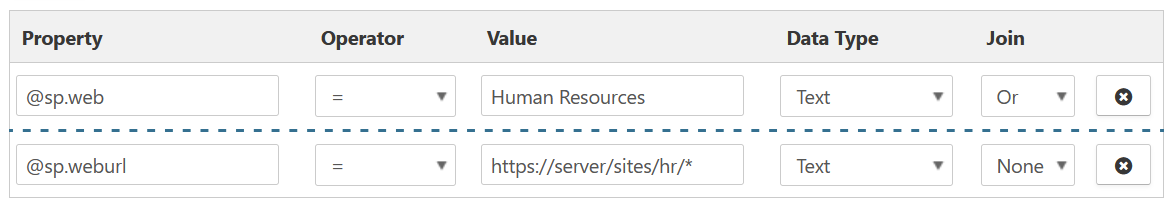

To create broad rules, use the Site or Site Collection. In the example below, @sp.web matches to the Site of a document and @sp.weburl matches the URL of the HR site.

Another example would be to use the Content Type or Library. Using the Content Type is recommended, if possible because then the rule will apply to records across any Site.

@sp.contenttype = Hiring Record
@sp.library = Human Resources

SharePoint has some atypical formats in order for values to work correctly. See the SharePoint Property Value Formatting page for specific usage.

Rules for File Shares

To create rules for a File Share, you can use System Tokens or File Share Tokens.

Here are a few examples of how to use tokens to create rules for a File Share:

Rules for a Directory Path or Shared Folder
- @folder = parentfolder
- @folder LIKE *parentfolder*
- @uri LIKE \\server\folder1\folder2\*
- @uir MATCHES [Regular Expression]
Rule for a Folder and all Sub-Folders that contain a specific name
- @uril LIKE *\folder\*
Rule for a Folder that begins with a specific name
- @folder LIKE name*
