File Share Connector

The File Share Connector has been deprecated and has been replaced by the Universal File Share Connector. While supported through the normal end of life process, it is highly recommended you deploy the Universal File Share Connector instead.

The File Share Connector enables Records Management to manage the lifecycle of documents stored in network file shares.

For the File Share Connector to be able to effectively manage network file shares, the file shares should be located within the same Local Area Network and, if possible, on the same machine where the File Share Connector is installed.

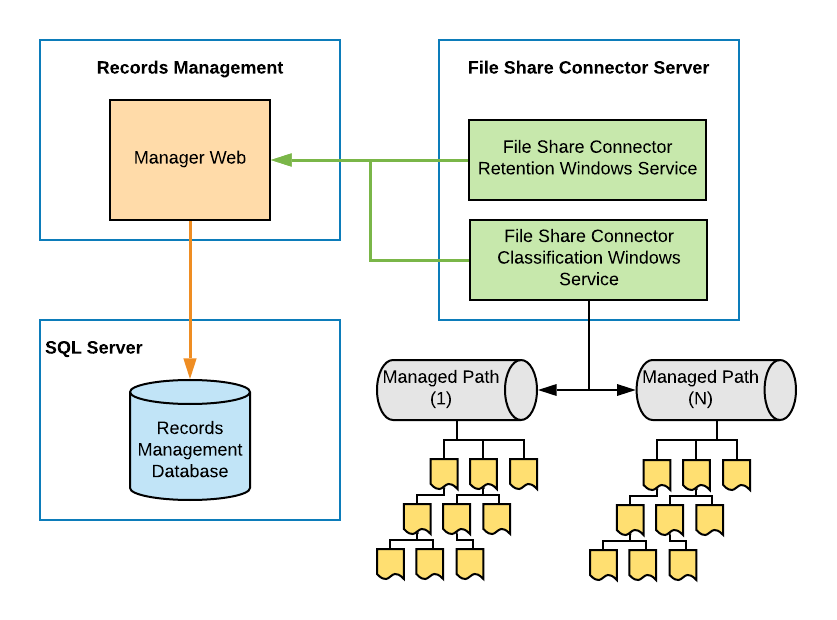

File Share Connector Architecture

Scalability

What comprises the solution...	.NET-based Windows Service for crawling and classification .NET-based Windows Server for retention action execution Services are configured by adding a list of file share paths to be managed Each managed path provided is recursively monitored and crawled using File System Watchers and File Enumeration
How scaling works...	Each managed path represent a single application thread Managed paths must not overlap Application can be installed to multiple servers to form a cluster Application supports failover, not load distribution Managed paths can be divided amongst multiple clusters
When to scale...	When CPU utilization is consistently above 90% for extended durations, a new cluster should be created and managed paths should be divided amongst the available clusters When Memory Pressure is consistently above 80% for extended durations, a new cluster should be created and managed paths should be divided amongst the available clusters
General Sizing Guidelines...	(Total # Files / 10,000,000) = # Managed Paths Ceiling(# Managed Paths / 10) = # Servers

File Share Connector Architecture

Scalability

Topics for Installation and Configuration of the File Share Connector
