Preparing to use SharePoint Online Connector (Modern Auth)

This article provides steps to follow to ensure a successful set-up of the SharePoint Online Connector (SPOC).

Important: You cannot configure the SharePoint Online Connector app to work with two different instances of Gimmal Records. You must provide distinct Microsoft 365 tenants to accomplish this requirement.

For example,

Configure the Azure AD (Entra ID) App Registration

Overview

To connect the SharePoint Online Connector to your Microsoft 365 environment, you need to create an application registration in Azure AD (Entra ID) and grant it permissions to access SharePoint sites.

  • These instructions are provided for convenience. Please contact your Microsoft 365 Azure Administrator or SharePoint Online administrator for assistance with completing these tasks.

  • The screenshots below are provided as a guide for your convenience. Microsoft may have made changes to the administrative portal since publication.

Prerequisites

  • Global Administrator or Application Administrator role in Azure AD

  • Access to the Azure Portal (https://portal.azure.com)

Step 1: Obtain an X.509 Certificate

Gimmal Records SharePoint Online Connector only supports certificate authentication. A valid x.509 certificate is required. The certificate must allow for an exportable private key.

Export the certificate in both .CER and .PFX formats, including the private key.

  • We strongly recommend that you acquire a certificate from a trusted Certificate Authority.

  • These certs are not SSL certs. They are solely used for authentication.

  • Please see this article and this article for more information on X.509 certificates

Step 2: Register the application in Microsoft Entra

An application registration for the Gimmal Records SharePoint Online Connector must be created in the Entra ID portal.


2.1 Open Entra (formerly Azure AD) Portal

  1. Navigate to https://entra.microsoft.com

  2. Sign in with your administrator account

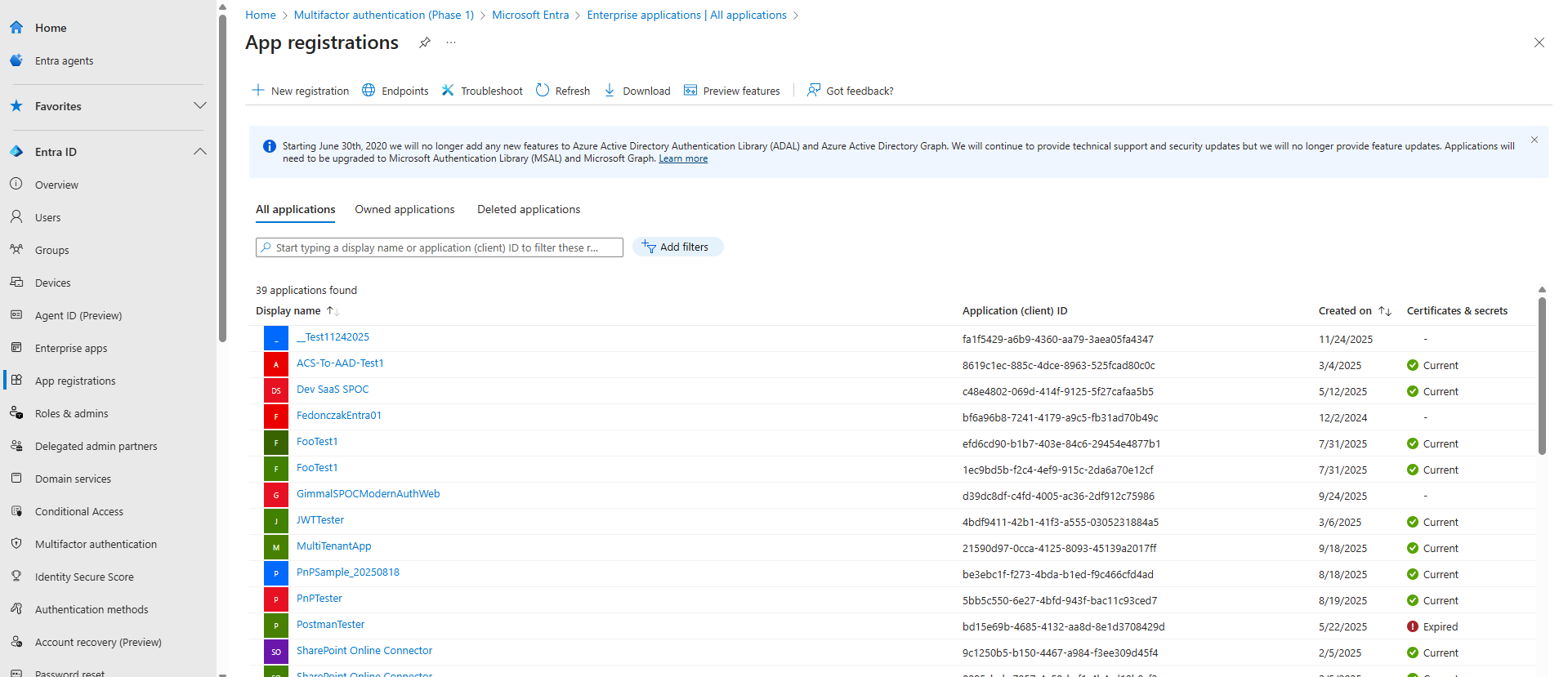

  3. Click App registrations in the left menu under Entra ID


  4. Click + New registration at the top of the application list

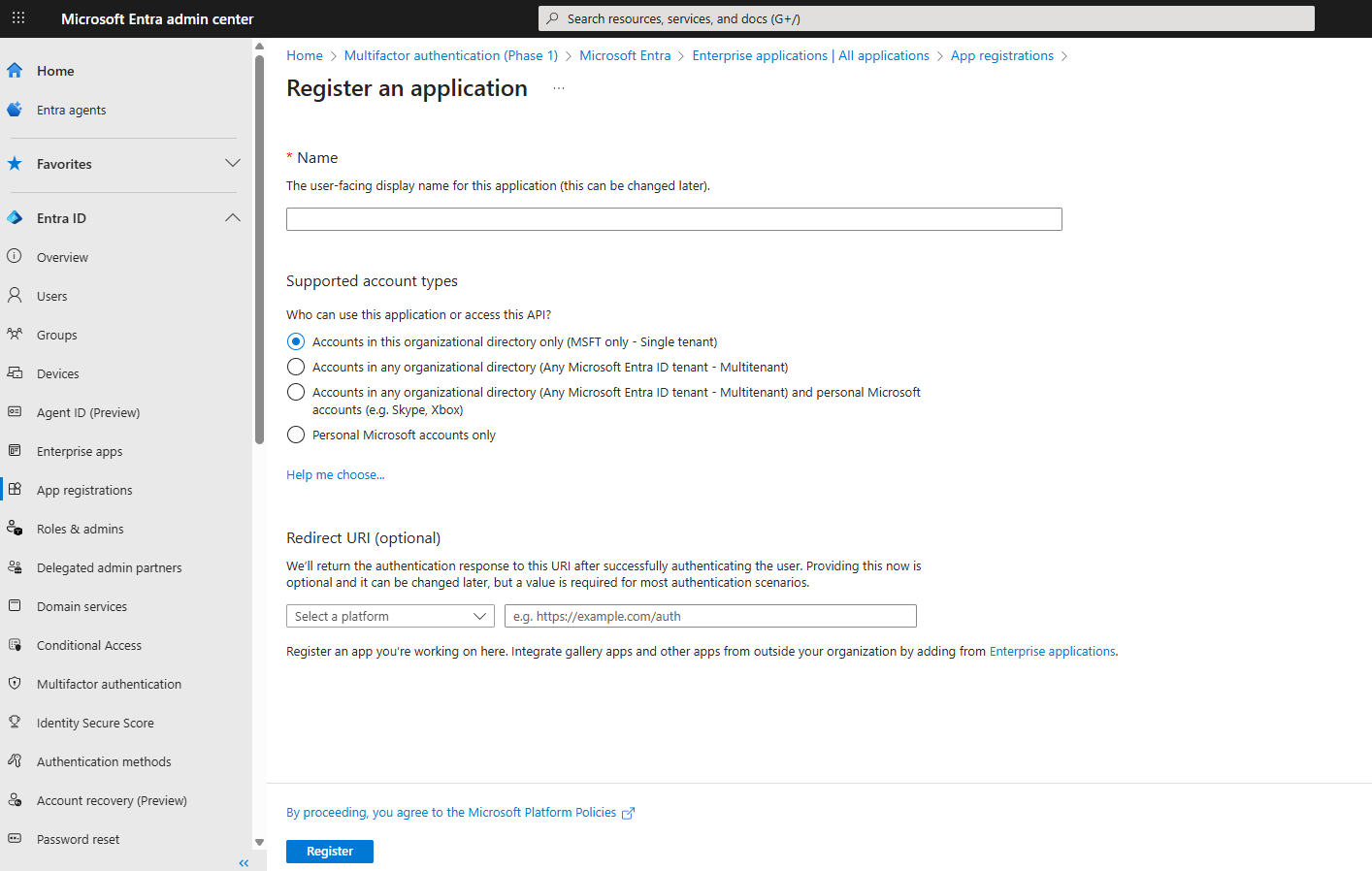

    A screenshot of a computer AI-generated content may be incorrect.

2.2 Create the application

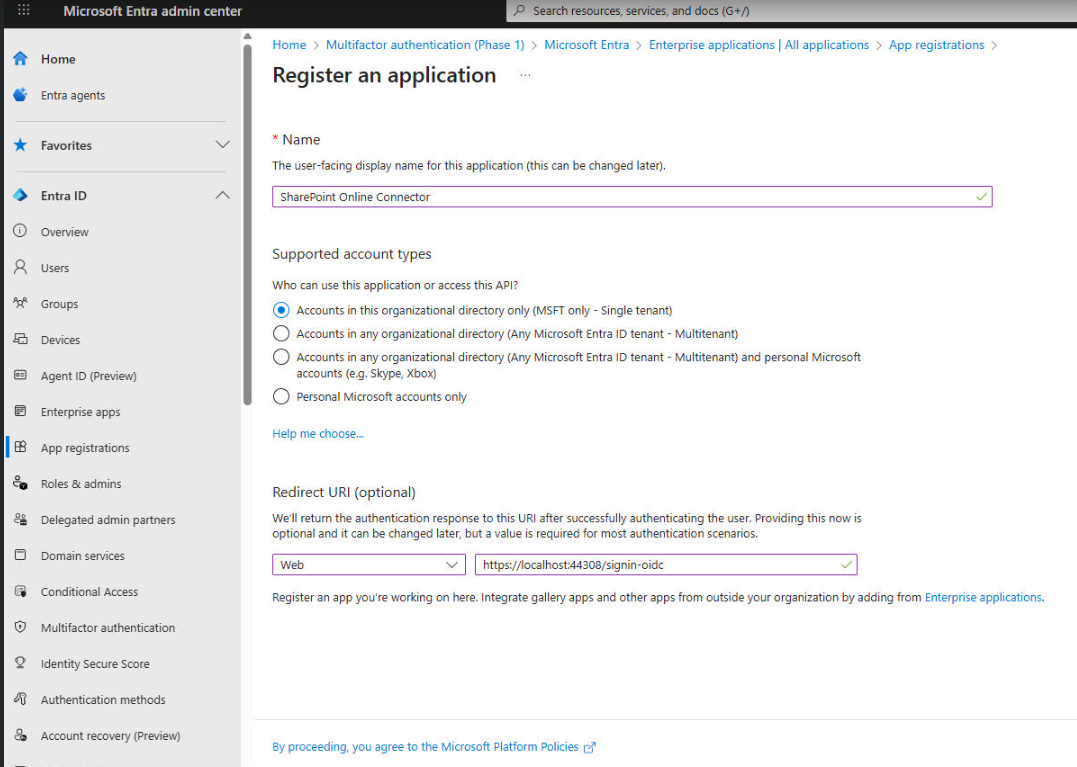

Fill in the registration form:

Field

Value

Name

SharePoint Online Connector

Supported account types

Accounts in this organizational directory only

Redirect URI
https://kb.gimmal.com/__attachments/795312129/image-20251218-171013.png?inst-v=98ed9f26-788a-4778-b28b-3f458ce62286

  • Select the ‘Web' option for the platform.

  • Enter the SPO Administrator Web URL with a format of:
    Url + /signin-oidc
    (e.g.  https://spo-records.gimmal.cloud/signin-oidc)

  • Note: Your region and deployment environment (Test or Production) should determine the URL to use. See table below:

Region

Test

Production

Canada

https://spo-records-ca.gimmal.build

 https://spo-records-ca.gimmal.cloud

United Kingdom

https://spo-records.uk.gimmal.build

 https://spo-records.uk.gimmal.cloud

United States

https://spo-records.gimmal.build

 https://spo-records.gimmal.cloud

Click Register.


The App Registration Overview screen will appear.

2.3 Save application details

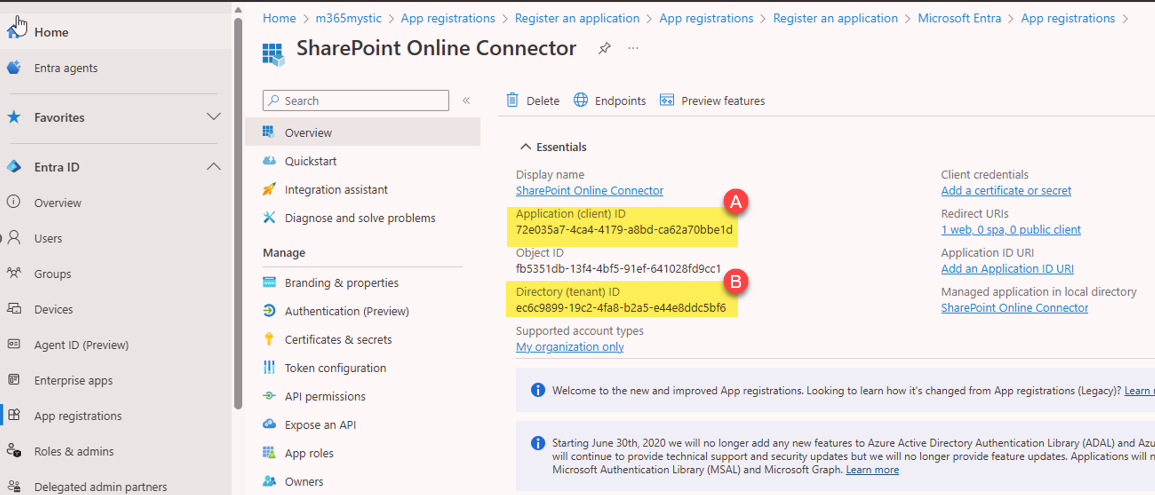

After registration, from the overview screen, copy and save the following values. They will be needed in future steps:

  • Application (client) ID (A)

  • Directory (tenant) ID (B)

Note: Keep these values in a secure location - you’ll enter them in the SharePoint Online Connector configuration.


Step 3: Configure Permissions

Continuing in Entra Portal, this step will configure the permissions required by the application registration.

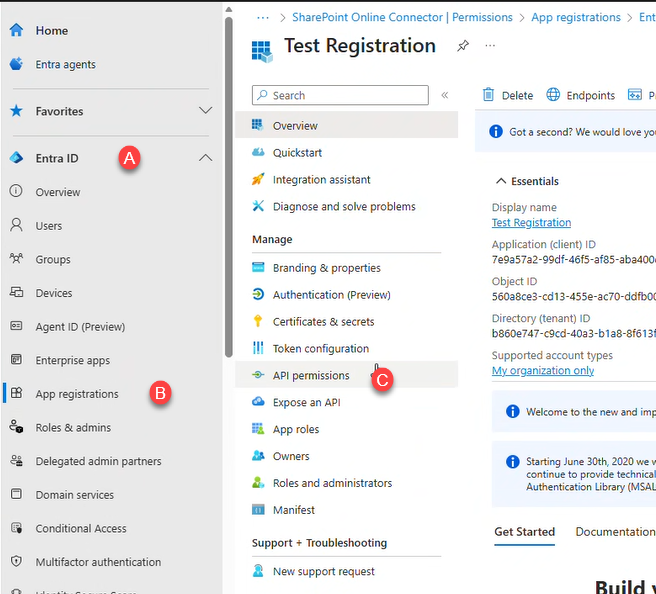

A screenshot of a computer AI-generated content may be incorrect.

3.1 Add API permissions

  1. Click API permissions under Manage (C)

  2. Click + Add a permission

  3. Select Microsoft Graph

  4. Select Application permissions

3.2 Select required permissions

  1. Search for and add each of these permissions:

  2. ✅ Sites.ReadWrite.All

  3. ✅ Files.ReadWrite.All

  4. Click the Add permissions button after selecting both options

3.3 Add SharePoint permissions

  1. Click API permissions under Manage

  2. Click + Add a permission

  3. Select SharePoint

  4. Select Application permissions

3.4 Select required permissions

  1. Search for and add each of these permissions:

  2. ✅ Sites.FullControl.All

  3. Click Add permissions after selecting.

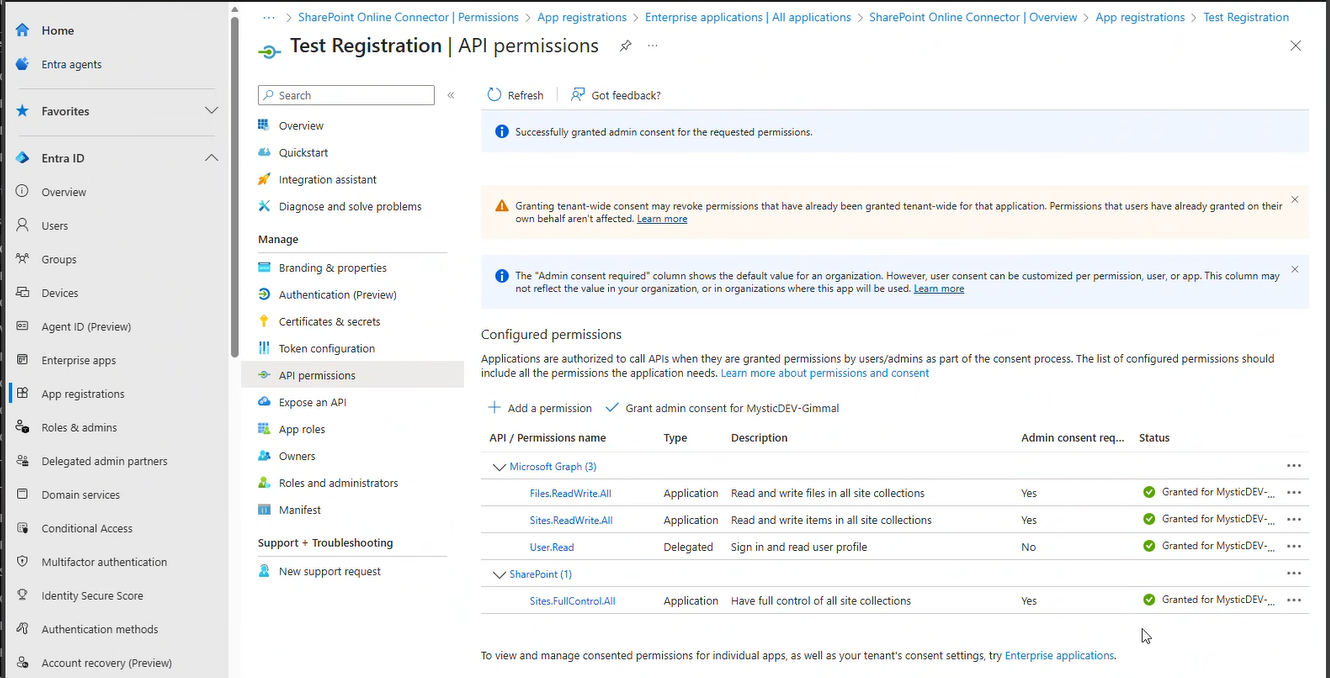

  1. Click Grant admin consent for [Your Organization]

  2. Click Yes to confirm

  3. Verify: You should see green checkmarks in the Status column for the selected permissions.

A screenshot of a computer AI-generated content may be incorrect.

3.6 Upload certificate

  1. Click Certificates & secrets under Manage

  2. Click the Certificates tab

  3. Click Upload certificate.

  4. In the right panel, click Select a file.

  5. Select the .CER file that was obtained in Step 1.

  6. Click Add.

  7. Verify the Thumbprint, Start date, and Expires.

Security reminders

  • 🔒 Keep your Client Certificate secure - treat it like a password

  • 📅 Set a calendar reminder to renew the certificate before it expires

Ensure a SharePoint App Catalog has been created

If using the Manage Records options in SharePoint, you will need to deploy an App Package to each site. To enable the deployment of an App Package to SharePoint Online, an App Catalog must exist to host the App Packages. If an app catalog does not exist for your tenancy, follow the guidance from the Microsoft documentation.

Need help?

Please contact Morae Support for assistance.
